ISGD、IRGD型管道泵，是泉達采用低轉速即四六級轉速電機，較普通的二級電機，有靜音，運行更加平穩等優點。該款因采用低轉速電機因此在價格方面可能要稍比普通型貴些。該系列低噪音管道泵全部采用上海名牌四六級電機，運行時平穩無噪音,是一種低噪音立式管道泵，故該系列產品具有高效節能、噪音低、性能可靠等優點。符合最新國家機械部JB/T53058-93的標準要求。產品按國際IS02858標準設計制造。通過國家機械工業部管道泵產品統檢合格。
ISGD管道離心泵廠家價格直銷，ISGD管道泵型號齊全，2024年價格表ISGD管道離心泵全新報價

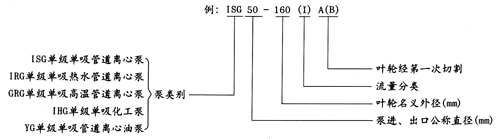

ISGD、IRGD低轉速立式管道泵型號意義
ISGD、IRGD低轉速立式管道泵產品用途
1．ISGD型立式管道離心泵，供輸送清水及物理化學性質類似于清水的其他液體之用，適用于工業和城市給排水，高層建筑增壓送水，園林噴灌，消防增壓，遠距離輸送，暖通制冷循環。浴室等冷暖水循環增壓及設備配套，使用溫度T<80℃.
2．IRGD（GRGD）立式熱水(高溫)循環泵廠泛適用于：能源、冶金、化工、紡織、造紙，以及賓館飯店等鍋爐高溫?zé)崴鰤貉h(huán)輸送及城市采暖系統循環用泵，IRG型使用溫度T<120℃，GRG型使用溫度T<240℃。
ISGD、IRGD低轉速立式管道泵特點
1．離心泵為立式結構，進出口口徑相同，且位于同一中心線上，可象閥門一樣安裝于管路之中，外形緊湊美觀，占地面積小，建筑投入低，如加上防護罩則可置于戶外使用。
2.離心泵葉輪直接安在電機的加長軸上，軸向尺寸短，結構緊湊，泵與電機軸承配置合理，能有效地平衡泵運轉產生的徑向和軸向負荷，從而保證了泵的運行平穩，振動噪音很低。
3.低噪音管道泵軸封采用機械密封或機械密封組合，采用進口鈦合金密封環、中型耐高溫機械密封和采用硬質合金材質，耐磨密封，能有效地增長離心泵機械密封的使用壽命。
4.安裝檢修方便，無需拆動化工泵管路系統，只要卸下泵聯體座螺母即可抽出全部轉子部件。
5.可根據使用要求即流量和揚程的需要采用低噪音管道泵的串、并聯運行方式.
6.可根據管路布置的要求采用化工泵的豎式和橫式安裝。
ISGD、IRGD低轉速立式管道泵結構說明
|

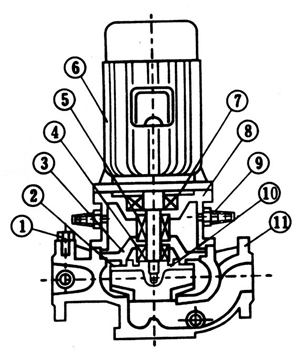

IRG立式管道泵結構
|
1
|
取壓塞
|
IRGD型熱水管道離心泵結構說明：
1.泵體與上部結構中間裝有隔熱蓋，適用于介質溫度T〈120度的場合。
2.泵與電機軸承組合裝置，保證軸運轉精度，提高了密封的可靠性。
3.可根據用戶要求隔熱蓋內安裝風冷裝置。
|
|
2
|
排氣閥
|
|
3
|
葉輪
|
|
4
|
機械密封
|
|
5
|
軸承
|
|
6
|
電機
|
|
7
|
聯體座
|
|
8
|
擋水圈
|
|
9
|
葉輪螺母
|
|
10
|
泵體
|
|
11
|
放水閥
|
|
|
1
|
排氣閥
|
GRG型結構說明：
1.低噪音管道泵體與上部結構中間采用外供水隔熱和冷卻，可以適用于溫度-45度~+240度的高溫場合。
2.熱水管道離心泵與電機軸承組合裝置，保證軸運轉精度，提高了密封的可靠性。
3.采用組合式密封，下端為進口鈦合金密封環的中型高溫機械密封。
|
|
2
|
葉輪
|
|
3
|
泵蓋
|
|
4
|
機械密封
|
|
5
|
機械密封
|
|
6
|
電機
|
|
7
|
軸承
|
|
8
|
聯體座
|
|
9
|
冷卻水管
|
|
10
|
葉輪螺母
|
|
11
|
泵體
|
|
ISG立式管道泵結構圖
|
1
|
取壓塞
|
ISGD型低轉速管道泵結構說明：
1.低轉速管道泵與電機同端蓋，軸向尺寸縮短，結構簡單。
2.熱水管道離心泵體上設有取壓孔和放水孔。
3.熱水管道離心泵體上設有排氣閥，工作前能拐車放泵內空氣。
4.泵體底部設有安裝底板和螺栓孔，保證整體機組安裝穩固。
|
|
2
|
排氣閥
|
|
3
|
葉輪
|
|
4
|
機械密封
|
|
5
|
擋水圈
|
|
6
|
電機
|
|
7
|
軸
|
|
8
|
聯體座
|
|
9
|
口十輪螺母
|
|
10
|
泵體
|
|
11
|
放水閥
|
ISGD、IRGD低轉速立式管道泵工作條件
1．低轉速管道泵吸入壓力<1.0 M P a，或泵系統最高工作壓力<1．6 MP a，即化工泵吸入口壓力+泵揚程圣l．6 MP a、低噪音管道泵靜壓試驗壓力為2.5 MPa，訂貨時請注明系統工作壓力。泵系統工作壓力大于1.6 MPa BU應在訂貨時另行提出。以便在制造時泵的過流部分和聯接部分采用鑄鋼材料。
2.環境溫度<40 ℃，相對濕度<9 5％。
3.化工泵所輸送介質中固體顆粒體積含量不超過單位體積的0.1％，粒度>0.2 mm 。
注：如使用介質為帶有細小顆粒，請?jiān)谟嗀浫沾缯f明，以便廠家采用耐磨式機械密封。
ISGD、IRGD低轉速立式管道泵性能參數表
ISW、ISWR、ISWH、ISWB型臥式管道離心泵性能參數（高轉速2900r/min）：
|
型號
|
流量
(m3/h)
|
揚程
(m)
|
電機功率
(kw)
|
轉速
(r/min)
|
效率
(%)
|
汽蝕余量
(m)
|
|
25-125
|
4
|
20
|
0.75
|
2900
|
36
|
2.3
|
|
25-125A
|
3.6
|
16
|
0.55
|
2900
|
35
|
2.3
|
|
25-160
|
4
|
32
|
1.5
|
2900
|
32
|
2.3
|
|
25-160A
|
3.7
|
28
|
1.1
|
2900
|
31
|
2.3
|
|
32-100
|
4.5
|
12.5
|
0.55
|
2900
|
56
|
2.3
|
|
32-100(I)
|
6.3
|
12.5
|
1.1
|
2900
|
54
|
2.0
|
|
32-125
|
4.5
|
20
|
0.75
|
2900
|
45
|
2.3
|
|
32-125(I)
|
6.3
|
20
|
1.1
|
2900
|
43
|
2.3
|
|
32-125A
|
4.0
|
16
|
0.55
|
2900
|
43
|
2.3
|
|
32-160
|
4.5
|
32
|
1.1
|
2900
|
44
|
2.3
|
|
32-160A
|
4.5
|
25
|
1.1
|
2900
|
42
|
2.3
|
|
32-160(I)
|
6.3
|
32
|
2.2
|
2900
|
42
|
2.3
|
|
32-200
|
4.5
|
50
|
3
|
2900
|
45
|
2.3
|
|
32-200A
|
4
|
40
|
2.2
|
2900
|
40
|
2.3
|
|
32-200(I)
|
6.3
|
50
|
4
|
2900
|
33
|
2.0
|
|
40-100
|
6.3
|
12.5
|
0.55
|
2900
|
54
|
2.3
|
|
40-100A
|
5.6
|
10
|
0.37
|
2900
|
52
|
2.3
|
|
40-125
|
6.3
|
20
|
1.1
|
2900
|
46
|
2.3
|
|
40-125A
|
5.6
|
16
|
0.75
|
2900
|
45
|
2.3
|
|
40-160
|
6.3
|
32
|
2.2
|
2900
|
40
|
2.3
|
|
40-160A
|
5.9
|
28
|
1.5
|
2900
|
39
|
2.3
|
|
40-160B
|
5.2
|
24
|
1.1
|
2900
|
38
|
2.3
|
|
40-200
|
6.3
|
50
|
4
|
2900
|
33
|
2.3
|
|
40-200A
|
5.9
|
44
|
3
|
2900
|
31
|
2.3
|
|
40-200B
|
5.5
|
38
|
2.2
|
2900
|
29
|
2.3
|
|
40-250
|
6.3
|
80
|
7.5
|
2900
|
28
|
2.3
|
|
40-250A
|
5.9
|
70
|
5.5
|
2900
|
28
|
2.3
|
|
40-250B
|
5.5
|
60
|
4
|
2900
|
27
|
2.3
|
|
40-100(I)
|
12.5
|
12.5
|
1.1
|
2900
|
62
|
2.3
|
|
40-125(I)
|
12.5
|
20
|
1.5
|
2900
|
60
|
2.3
|
|
40-125(I)A
|
11.2
|
17.2
|
1.1
|
2900
|
58
|
2.3
|
|
40-160(I)
|
12.5
|
32
|
3
|
2900
|
52
|
2.3
|
|
40-160(I)A
|
11.7
|
28
|
2.2
|
2900
|
51
|
2.3
|
|
40-160(I)B
|
10.5
|
22.5
|
1.5
|
2900
|
50
|
2.3
|
|
40-200(I)
|
12.5
|
50
|
5.5
|
2900
|
46
|
2.3
|
|
40-200(I)A
|
11.7
|
40
|
4
|
2900
|
45
|
2.3
|
|
40-200(I)B
|
10.5
|
35
|
3
|
2900
|
44
|
2.3
|
|
40-250(I)
|
12.5
|
80
|
11
|
2900
|
38
|
2.3
|
|
40-250(I)A
|
11.7
|
70
|
7.5
|
2900
|
38
|
2.3
|
|
40-250(I)B
|
10.8
|
60
|
7.5
|
2900
|
37
|
2.3
|
|
50-100
|
12.5
|
12.5
|
1.1
|
2900
|
62
|
2.3
|
|
50-125
|
12.5
|
20
|
1.5
|
2900
|
58
|
2.3
|
|
50-125A
|
11.2
|
17.2
|
1.1
|
2900
|
57
|
2.3
|
|
50-160
|
12.5
|
32
|
3
|
2900
|
52
|
2.3
|
|
50-160A
|
11.7
|
28
|
2.2
|
2900
|
51
|
2.3
|
|
50-160B
|
10.5
|
22.5
|
1.5
|
2900
|
50
|
2.3
|
|
50-200
|
12.5
|
50
|
5.5
|
2900
|
46
|
2.3
|
|
50-200A
|
11.7
|
44.5
|
4
|
2900
|
45
|
2.3
|
|
50-200B
|
10.5
|
35
|
3
|
2900
|
44
|
2.3
|
|
50-250
|
12.5
|
80
|
11
|
2900
|
38
|
2.3
|
|
50-250A |
11.7
|
70
|
7.5
|
2900
|
38
|
2.3
|
|
50-250B |
10.8
|
60
|
7.5
|
2900
|
37
|
2.3
|
|
50-100(I) |
25
|
12.5
|
1.5
|
2900
|
69
|
2.5
|
|
50-100(I)A |
22.4
|
10
|
1.1
|
2900
|
67
|
2.5
|
|
50-125(I) |
25
|
20
|
3
|
2900
|
68
|
2.5
|
|
50-125(I)A |
22.4
|
16
|
2.2
|
2900
|
66
|
2.5
|
|
50-160(I) |
25
|
32
|
4
|
2900
|
63
|
2.5
|
|
50-160(I)A |
23.4
|
28
|
4
|
2900
|
62
|
2.5
|
|
50-160(I)B |
21.6
|
24
|
3
|
2900
|
58
|
2.5
|
|
50-200(I) |
25
|
50
|
7.5
|
2900
|
58
|
2.5
|
|
50-200(I)A |
23.4
|
44
|
7.5
|
2900
|
57
|
2.5
|
|
50-200(I)B |
21.6
|
37
|
5.5
|
2900
|
55
|
2.5
|
|
50-250(I) |
25
|
80
|
15
|
2900
|
50
|
2.5
|
|
50-250(I)A |
23.4
|
70
|
11
|
2900
|
50
|
2.5
|
|
50-250(I)B |
21.6
|
60
|
11
|
2900
|
49
|
2.5
|
|
50-315(I) |
25
|
125
|
30
|
2900
|
40
|
2.5
|
|
50-315(I)A |
23.4
|
110
|
22
|
2900
|
40
|
2.5
|
|
50-315(I)B |
21.6
|
93
|
18.5
|
2900
|
39
|
2.5
|
|
65-100 |
25
|
12.5
|
1.5
|
2900
|
69
|
2.5
|
|
65-100A |
22.4
|
10
|
1.1
|
2900
|
67
|
2.5
|
|
65-125 |
25
|
20
|
3
|
2900
|
68
|
2.5
|
|
65-125A |
22.4
|
16
|
2.2
|
2900
|
66
|
2.5
|
|
65-160 |
25
|
32
|
4
|
2900
|
63
|
2.5
|
|
65-160A |
23.4
|
28
|
4
|
2900
|
62
|
2.5
|
|
65-160B |
21.6
|
24
|
3
|
2900
|
58
|
2.5
|
|
65-200 |
25
|
50
|
7.5
|
2900
|
58
|
2.5
|
|
65-200A |
23.4
|
44
|
7.5
|
2900
|
57
|
2.5
|
|
65-200B |
21.6
|
37
|
5.5
|
2900
|
55
|
2.5
|
|
65-250 |
25
|
80
|
15
|
2900
|
50
|
2.5
|
|
65-250A |
23.4
|
70
|
11
|
2900
|
50
|
2.5
|
|
65-250B |
21.6
|
60
|
11
|
2900
|
49
|
2.5
|
|
65-315 |
25
|
125
|
30
|
2900
|
40
|
2.5
|
|
65-315A |
23.4
|
110
|
22
|
2900
|
40
|
2.5
|
|
65-315B |
21.6
|
93
|
18.5
|
2900
|
39
|
2.5
|
|
65-100(I) |
50
|
12.5
|
3
|
2900
|
73
|
3.0
|
|
65-100(I)A |
44.8
|
10
|
2.2
|
2900
|
72
|
3.0
|
|
65-125(I) |
50
|
20
|
5.5
|
2900
|
72.5
|
3.0
|
|
65-125(I)A |
44.8
|
16
|
4
|
2900
|
71
|
3.0
|
|
65-160(I) |
50
|
32
|
7.5
|
2900
|
71
|
3.0
|
|
65-160(I)A |
46.8
|
28
|
7.5
|
2900
|
70
|
3.0
|
|
65-160(I)B |
43.2
|
24
|
5.5
|
2900
|
69
|
3.0
|
|
65-200(I) |
50
|
50
|
15
|
2900
|
67
|
3.0
|
|
65-200(I)A |
46.8
|
44
|
11
|
2900
|
66
|
3.0
|
|
65-200(I)B |
43
|
37
|
7.5
|
2900
|
65
|
3.0
|
|
65-250(I) |
50
|
80
|
22
|
2900
|
59
|
3.0
|
|
65-250(I)A |
46.8
|
70
|
18.5
|
2900
|
59
|
3.0
|
|
65-250(I)B |
43
|
60
|
15
|
2900
|
58
|
3.0
|
|
65-315(I) |
50
|
125
|
37
|
2900
|
54
|
3.0
|
|
65-315(I)A |
45.8
|
105
|
30
|
2900
|
54
|
3.0
|
|
65-315(I)B |
43
|
93
|
30
|
2900
|
53
|
3.0
|
|
80-100 |
50
|
12.5
|
3
|
2900
|
73
|
3.0
|
|
80-100A |
44.8
|
10
|
2.2
|
2900
|
72
|
3.0
|
|
80-125 |
50
|
20
|
5.5
|
2900
|
72.5
|
3.0
|
|
80-125A |
44.8
|
16
|
4
|
2900
|
71
|
3.0
|
|
80-160 |
50
|
32
|
7.5
|
2900
|
71
|
3.0
|
|
80-160A |
46.8
|
28
|
7.5
|
2900
|
70
|
3.0
|
|
80-160B |
43.2
|
24
|
5.5
|
2900
|
69
|
3.0
|
|
80-200 |
50
|
50
|
15
|
2900
|
67
|
3.0
|
|
80-200A |
46.8
|
44
|
11
|
2900
|
66
|
3.0
|
|
80-200B |
43
|
37
|
7.5
|
2900
|
65
|
3.0
|
|
80-250 |
50
|
80
|
22
|
2900
|
59
|
3.0
|
|
80-250A |
46.8
|
70
|
18.5
|
2900
|
59
|
3.0
|
|
80-250B |
43
|
60
|
15
|
2900
|
58
|
3.0
|
|
80-315 |
50
|
125
|
37
|
2900
|
54
|
3.0
|
|
80-315A |
45.8
|
105
|
30
|
2900
|
54
|
3.0
|
|
80-315B |
43
|
93
|
30
|
2900
|
53
|
3.0
|
|
80-315C |
41
|
85
|
22
|
2900
|
51
|
3.0
|
|
80-350 |
50
|
150
|
55
|
2900
|
66
|
3.0
|
|
80-350A |
44
|
142
|
45
|
2900
|
65
|
3.0
|
|
80-350B |
40
|
135
|
37
|
2900
|
63
|
3.0
|
|
80-100(I) |
100
|
12.5
|
5.5
|
2900
|
76
|
4.5
|
|
80-100(I)A |
89
|
10
|
4
|
2900
|
74
|
4.5
|
|
80-125(I) |
100
|
20
|
11
|
2900
|
76
|
4.5
|
|
80-125(I)A |
89
|
16
|
7.5
|
2900
|
74
|
4.5
|
|
80-160(I) |
100
|
32
|
15
|
2900
|
76
|
4.5
|
|
80-160(I)A |
93.5
|
28
|
11
|
2900
|
74
|
4.5
|
|
80-160(I)B |
86.4
|
24
|
11
|
2900
|
72
|
4.5
|
|
80-200(I) |
100
|
50
|
22
|
2900
|
74
|
4.0
|
|
80-200(I)A |
93.5
|
44
|
18.5
|
2900
|
73
|
4.0
|
|
80-200(I)B |
86.4
|
37
|
15
|
2900
|
71
|
4.0
|
|
80-250(I) |
100
|
80
|
37
|
2900
|
69
|
4.0
|
|
80-250(I)A |
93.5
|
70
|
30
|
2900
|
68
|
4.0
|
|
80-250(I)B |
86.4
|
60
|
30
|
2900
|
66
|
4.0
|
|
80-315(I) |
100
|
125
|
75
|
2900
|
66
|
4.0
|
|
80-315(I)A |
93.5
|
110
|
55
|
2900
|
66
|
4.0
|
|
80-315(I)B |
86.4
|
93
|
45
|
2900
|
65
|
4.0
|
|
80-315(I)C |
82
|
85
|
37
|
2900
|
63
|
4.0
|
|
100-100 |
100
|
12.5
|
5.5
|
2900
|
76
|
4.5
|
|
100-100A |
89
|
10
|
4
|
2900
|
74
|
4.5
|
|
100-125 |
100
|
20
|
11
|
2900
|
76
|
4.5
|
|
100-125A |
89
|
16
|
7.5
|
2900
|
74
|
4.5
|
|
100-160 |
100
|
32
|
15
|
2900
|
76
|
4.5
|
|
100-160A |
93.5
|
28
|
11
|
2900
|
74
|
4.5
|
|
100-160B |
86.4
|
24
|
11
|
2900
|
72
|
4.5
|
|
100-200 |
100
|
50
|
22
|
2900
|
74
|
4.0
|
|
100-200A |
93.5
|
44
|
18.5
|
2900
|
73
|
4.0
|
|
100-200B |
86.4
|
37
|
15
|
2900
|
71
|
4.0
|
|
100-250 |
100
|
80
|
37
|
2900
|
69
|
4.0
|
|
100-250A |
93.5
|
70
|
30
|
2900
|
68
|
4.0
|
|
100-250B |
86.4
|
60
|
30
|
2900
|
66
|
4.0
|
|
100-315 |
100
|
125
|
75
|
2900
|
66
|
4.0
|
|
100-315A |
93.5
|
110
|
55
|
2900
|
66
|
4.0
|
|
100-315B |
86.4
|
93
|
45
|
2900
|
65
|
4.0
|
|
100-100(I) |
160
|
12.5
|
11
|
2900
|
73
|
4.5
|
|
100-125(I) |
160
|
20
|
15
|
2900
|
74
|
4.5
|
|
100-125(I)A
|
143
|
16
|
11
|
2900
|
72
|
4.5
|
|
100-160(I)
|
160
|
32
|
22
|
2900
|
79
|
5.6
|
|
100-160(I)A
|
150
|
28
|
18.5
|
2900
|
76
|
5.0
|
|
100-200(I)
|
160
|
50
|
37
|
2900
|
79
|
5.2
|
|
100-200(I)A
|
150
|
45
|
30
|
2900
|
74
|
4.5
|
|
100-200(I)B
|
138
|
40
|
22
|
2900
|
72
|
4.5
|
|
100-250(I)
|
160
|
80
|
55
|
2900
|
77
|
4.8
|
|
100-250(I)A
|
140
|
70
|
45
|
2900
|
72
|
4.5
|
|
100-250(I)B
|
100
|
65
|
37
|
2900
|
70
|
4.5
|
|
100-350
|
100
|
150
|
90
|
2900
|
57
|
4.0
|
|
100-350A
|
87
|
142
|
75
|
2900
|
75
|
4.0
|
|
100-350B
|
82
|
135
|
55
|
2900
|
75
|
4.0
|
|
125-100
|
160
|
12.5
|
11
|
2900
|
82
|
4.0
|
|
125-100A
|
143
|
10
|
7.5
|
2900
|
77
|
4.0
|
|
125-125
|
160
|
20
|
15
|
2900
|
80
|
4.0
|
|
125-125A
|
143
|
16
|
11
|
2900
|
77
|
4.0
|
|
125-160
|
200
|
32
|
30
|
2900
|
78
|
4.0
|
|
125-160A
|
187
|
28
|
22
|
2900
|
76
|
4.0
|
|
125-160B
|
180
|
24.5
|
18.5
|
2900
|
73
|
4.0
|
|
125-200
|
200
|
50
|
45
|
2900
|
77
|
5.5
|
|
125-200A
|
187
|
44
|
37
|
2900
|
76
|
5.5
|
|
125-200B
|
172
|
37
|
30
|
2900
|
75
|
5.5
|
|
125-250
|
200
|
80
|
75
|
2900
|
75
|
5.0
|
|
125-250A
|
187
|
70
|
55
|
2900
|
74
|
5.5
|
|
125-250B
|
172
|
60
|
45
|
2900
|
73
|
5.5
|
|
125-315
|
200
|
125
|
110
|
2900
|
70
|
5.0
|
|
125-315A
|
187
|
110
|
90
|
2900
|
70
|
5.0
|
|
125-315B
|
172
|
93
|
75
|
2900
|
69
|
5.0
|
|
125-315C
|
160
|
78
|
55
|
2900
|
67
|
5.0
|
|
150-125
|
160
|
20
|
11
|
2900
|
76
|
4.0
|
|
150-125A
|
150
|
16
|
7.5
|
2900
|
77
|
4.0
|
|
150-160
|
160
|
32
|
22
|
2900
|
75
|
4.0
|
|
150-160A
|
150
|
28
|
18.5
|
2900
|
76
|
4.0
|
|
150-160B
|
140
|
24
|
15
|
2900
|
73
|
4.0
|
|
150-200
|
160
|
50
|
37
|
2900
|
77
|
5.5
|
|
150-200A
|
150
|
44
|
30
|
2900
|
76
|
5.5
|
|
150-200B
|
140
|
38
|
22
|
2900
|
75
|
5.5
|
|
150-250
|
200
|
80
|
75
|
2900
|
75
|
5.0
|
|
150-250A
|
187
|
70
|
55
|
2900
|
74
|
5.5
|
|
150-250B
|
172
|
60
|
45
|
2900
|
73
|
5.5
|
|
150-315
|
200
|
125
|
110
|
2900
|
70
|
5.0
|
|
150-315A
|
187
|
110
|
90
|
2900
|
70
|
5.0
|
|
150-315B
|
172
|
93
|
75
|
2900
|
69
|
5.0
|
ISW、ISWR、ISWH、ISWB型臥式管道離心泵性能參數
（低轉速1450、970r/min）：
|
型號
|
流量
(m3/h)
|
揚程
(m)
|
電機功率
(kw)
|
轉速
(r/min)
|
|
40-125(I) |
6.3
|
5
|
0.55
|
1450
|
|
40-160(I) |
6.3
|
8
|
0.55
|
1450
|
|
40-160(I)A |
5.5
|
6
|
0.55
|
1450
|
|
40-200(I) |
6.3
|
12.5
|
0.75
|
1450
|
|
40-200(I)A |
5.8
|
11
|
0.55
|
1450
|
|
40-250(I) |
6.3
|
20
|
1.5
|
1450
|
|
40-250(I)A |
5.8
|
17
|
1.1
|
1450
|
|
50-125 |
6.3
|
5
|
0.55
|
1450
|
|
50-160 |
6.3
|
8
|
0.55
|
1450
|
|
50-160A |
5.5
|
6
|
0.55
|
1450
|
|
50-200 |
6.3
|
12.5
|
0.75
|
1450
|
|
50-200A |
5.8
|
11
|
0.55
|
1450
|
|
50-250 |
6.3
|
20
|
1.5
|
1450
|
|
50-250A |
5.8
|
17
|
1.1
|
1450
|
|
50-125(I) |
12.5
|
5
|
0.55
|
1450
|
|
50-160(I) |
12.5
|
8
|
0.75
|
1450
|
|
50-160(I)A |
11
|
6
|
0.55
|
1450
|
|
50-200(I) |
12.5
|
12.5
|
1.1
|
1450
|
|
50-200(I)A |
11.2
|
10
|
0.75
|
1450
|
|
50-250(I) |
12.5
|
20
|
2.2
|
1450
|
|
50-250(I)A |
11.7
|
17.5
|
1.5
|
1450
|
|
50-250(I)B |
10
|
13
|
1.1
|
1450
|
|
50-315(I) |
12.5
|
32
|
4
|
1450
|
|
50-315(I)A |
11.7
|
28
|
3
|
1450
|
|
50-315(I)B |
10
|
21
|
3
|
1450
|
|
65-125 |
12.5
|
5
|
0.55
|
1450
|
|
65-160 |
12.5
|
8
|
0.75
|
1450
|
|
65-160A |
11
|
6
|
0.55
|
1450
|
|
65-200 |
12.5
|
12.5
|
1.1
|
1450
|
|
65-200A |
11.2
|
10
|
0.75
|
1450
|
|
65-250 |
12.5
|
20
|
2.2
|
1450
|
|
65-250A |
11.7
|
17.5
|
1.5
|
1450
|
|
65-250B |
10
|
13
|
1.1
|
1450
|
|
65-315 |
12.5
|
32
|
4
|
1450
|
|
65-315A |
11.7
|
28
|
3
|
1450
|
|
65-315B |
10
|
21
|
3
|
1450
|
|
65-125(I) |
25
|
5
|
0.75
|
1450
|
|
65-160(I) |
25
|
8
|
1.5
|
1450
|
|
65-160(I)A |
22
|
6
|
1.1
|
1450
|
|
65-200(I) |
25
|
12.5
|
2.2
|
1450
|
|
65-200(I)A |
23.3
|
11
|
1.5
|
1450
|
|
65-250(I) |
25
|
20
|
3
|
1450
|
|
65-250(I)A |
22.2
|
15.8
|
2.2
|
1450
|
|
65-250(I)B |
20
|
12.8
|
1.54
|
1450
|
|
65-315(I) |
25
|
32
|
5.5
|
1450
|
|
65-315(I)A |
22.5
|
26
|
4
|
1450
|
|
65-315(I)B |
20
|
21
|
3
|
1450
|
|
80-125 |
25
|
5
|
0.75
|
1450
|
|
80-160 |
25
|
8
|
1.5
|
1450
|
|
80-160A |
22
|
6
|
1.1
|
1450
|
|
80-200 |
25
|
12.5
|
2.2
|
1450
|
|
80-200A |
23.3
|
11
|
1.5
|
1450
|
|
80-250 |
25
|
20
|
3
|
1450
|
|
80-250A
|
22.2
|
15.8
|
2.2
|
1450
|
|
80-250B
|
20
|
12.8
|
1.5
|
1450
|
|
80-315
|
25
|
32
|
5.5
|
1450
|
|
80-315A
|
22.5
|
26
|
4
|
1450
|
|
80-315B
|
20
|
21
|
3
|
1450
|
|
80-125(I)
|
50
|
5
|
1.5
|
1450
|
|
80-160(I)
|
50
|
8
|
2.2
|
1450
|
|
80-160(I)A
|
44.7
|
6
|
1.5
|
1450
|
|
80-160(I)B |
43.2
|
5.8
|
1.5
|
1450
|
|
80-200(I) |
50
|
12.5
|
4
|
1450
|
|
80-200(I)A |
44.7
|
10
|
3
|
1450
|
|
80-250(I) |
50
|
20
|
5.5
|
1450
|
|
80-250(I)A |
46
|
17
|
4
|
1450
|
|
80-250(I)B |
40.5
|
13
|
3
|
1450
|
|
80-315(I) |
50
|
32
|
11
|
1450
|
|
80-315(I)A |
46
|
27.9
|
7.5
|
1450
|
|
80-315(I)B |
40.5
|
21
|
5.5
|
1450
|
|
100-125 |
50
|
5
|
1.5
|
1450
|
|
100-160 |
50
|
8
|
2.2
|
1450
|
|
100-160A |
46
|
6
|
1.5
|
1450
|
|
100-200 |
50
|
12.5
|
4
|
1450
|
|
100-200A |
44.7
|
10
|
3
|
1450
|
|
100-250 |
50
|
20
|
5.5
|
1450
|
|
100-250A |
46
|
17
|
4
|
1450
|
|
100-250B |
40.5
|
13
|
3
|
1450
|
|
100-315 |
50
|
32
|
11
|
1450
|
|
100-315A |
46
|
27.9
|
7.5
|
1450
|
|
100-315B |
40.5
|
21
|
5.5
|
1450
|
|
100-125(I) |
80
|
5
|
2.2
|
1450
|
|
100-160(I) |
80
|
8
|
3
|
1450
|
|
100-160(I)A |
72
|
6.5
|
2.2
|
1450
|
|
100-200(I) |
80
|
12.5
|
5.5
|
1450
|
|
100-200(I)A |
72
|
10
|
4
|
1450
|
|
100-250(I) |
80
|
20
|
11
|
1450
|
|
100-250(I)A |
75
|
17.5
|
7.5
|
1450
|
|
100-250(I)B |
69
|
15
|
5.5
|
1450
|
|
100-315(I) |
80
|
32
|
15
|
1450
|
|
100-315(I)A |
75
|
27.5
|
11
|
1450
|
|
100-315(I)B |
70
|
24
|
11
|
1450
|
|
100-400(I) |
80
|
50
|
22
|
1450
|
|
100-400(I)A |
75
|
44
|
18.5
|
1450
|
|
100-400(I)B |
70
|
38
|
15
|
1450
|
|
125-125 |
100
|
5
|
2.2
|
1450
|
|
125-160 |
100
|
8
|
4
|
1450
|
|
125-160A |
87
|
6
|
4
|
1450
|
|
125-200 |
100
|
12.5
|
7.5
|
1450
|
|
125-200A |
89
|
10
|
5.5
|
1450
|
|
125-250 |
100
|
220
|
11
|
1450
|
|
125-250A |
93.5
|
17.5
|
7.5
|
1450
|
|
125-250B |
87
|
15
|
7.5
|
1450
|
|
125-315 |
100
|
32
|
15
|
1450
|
|
125-315A |
91
|
27
|
11
|
1450
|
|
125-315B |
87
|
24
|
11
|
1450
|
|
125-400 |
100
|
50
|
30
|
1450
|
|
125-400A |
94
|
44
|
22
|
1450
|
|
125-400B |
87
|
37.5
|
18.5
|
1450
|
|
125-200(I) |
160
|
12.5
|
11
|
1450
|
|
125-200(I)A |
143
|
10
|
7.5
|
1450
|
|
125-250(I) |
160
|
20
|
15
|
1450
|
|
125-250(I)A |
147
|
17
|
11
|
1450
|
|
125-250(I)B |
134
|
14
|
7.5
|
1450
|
|
125-315(I) |
160
|
32
|
22
|
1450
|
|
125-315(I)A |
150
|
28
|
18.5
|
1450
|
|
125-315(I)B |
138
|
24
|
15
|
1450
|
|
125-400(I) |
160
|
50
|
37
|
1450
|
|
125-400(I)A |
150
|
44
|
30
|
1450
|
|
125-400(I)B |
138
|
38
|
30
|
1450
|
|
150-200 |
160
|
12.5
|
11
|
1450
|
|
150-200A |
143
|
10
|
7.5
|
1450
|
|
150-250 |
160
|
20
|
15
|
1450
|
|
150-250A |
147
|
17
|
11
|
1450
|
|
150-250B |
134
|
14
|
7.5
|
1450
|
|
150-315 |
160
|
32
|
22
|
1450
|
|
150-315A |
150
|
28
|
18.5
|
1450
|
|
150-315B |
138
|
24
|
15
|
1450
|
|
150-400 |
160
|
50
|
37
|
1450
|
|
150-400A |
150
|
44
|
30
|
1450
|
|
150-400B |
138
|
38
|
30
|
1450
|
|
150-200(I) |
200
|
12.5
|
15
|
1450
|
|
150-200(I)A |
179
|
10
|
11
|
1450
|
|
150-250(I) |
200
|
20
|
18.5
|
1450
|
|
150-250(I)A |
187
|
17.5
|
15
|
1450
|
|
150-250(I)B |
173
|
14
|
11
|
1450
|
|
150-315(I) |
200
|
32
|
30
|
1450
|
|
150-315(I)A |
187
|
28
|
22
|
1450
|
|
150-315(I)B |
173
|
24
|
18.5
|
1450
|
|
150-400(I) |
200
|
50
|
45
|
1450
|
|
150-400(I)A |
187
|
44
|
37
|
1450
|
|
150-400(I)B |
173
|
37.5
|
30
|
1450
|
|
200-200 |
200
|
12.5
|
15
|
1450
|
|
200-200A |
179
|
10
|
11
|
1450
|
|
200-250 |
200
|
20
|
18.5
|
1450
|
|
200-250A |
187
|
17.5
|
15
|
1450
|
|
200-250B |
173
|
14
|
11
|
1450
|
|
200-315 |
200
|
32
|
30
|
1450
|
|
200-315A |
187
|
28
|
22
|
1450
|
|
200-315B |
173
|
24
|
18.5
|
1450
|
|
200-400 |
200
|
50
|
45
|
1450
|
|
200-400A |
187
|
44
|
37
|
1450
|
|
200-400B |
173
|
37.5
|
30
|
1450
|
|
200-200(I) |
400
|
12.5
|
22
|
1450
|
|
200-200(I)A |
358
|
10
|
18.5
|
1450
|
|
200-250(I) |
400
|
20
|
30
|
1450
|
|
200-250(I)A |
358
|
16
|
22
|
1450
|
|
200-250(I)B |
322
|
13
|
18.5
|
1450
|
|
200-315(I) |
400
|
32
|
55
|
1450
|
|
200-315(I)A |
374
|
28
|
45
|
1450
|
|
200-315(I)B |
346
|
24
|
37
|
1450
|
|
200-400(I) |
400
|
50
|
90
|
1450
|
|
200-400(I)A |
374
|
44
|
75
|
1450
|
|
200-400(I)B |
347
|
38
|
55
|
1450
|
|
200-400(I)C |
320
|
32
|
45
|
1450
|
|
250-250 |
550
|
20
|
45
|
1450
|
|
250-250A |
490
|
16
|
37
|
1450
|
|
250-315 |
550
|
32
|
75
|
1450
|
|
250-315A |
515
|
28
|
55
|
1450
|
|
250-315B |
476
|
24
|
45
|
1450
|
|
250-400 |
550
|
50
|
110
|
1450
|
|
250-400A |
515
|
44
|
90
|
1450
|
|
250-400B |
476
|
37.5
|
75
|
1450
|
|
300-400 |
720
|
50
|
132
|
1450
|
|
300-400A |
662
|
44
|
110
|
1450
|
|
300-400B |
609
|
38
|
90
|
1450
|
|
300-400C |
561
|
33
|
75
|
1450
|
|
300-460 |
720
|
65
|
200
|
1450
|
|
300-460A |
662
|
55
|
160
|
1450
|
|
300-460B |
609
|
45
|
110
|
1450
|
|
300-460C |
561
|
38
|
90
|
1450
|
|
300-510 |
720
|
80
|
250
|
1450
|
|
300-510A |
662
|
70.5
|
200
|
1450
|
|
300-510B |
609
|
62
|
160
|
1450
|
|
300-510C |
561
|
54.5
|
132
|
1450
|
|
300-235 |
720
|
18
|
55
|
970
|
|
300-235A |
657
|
15
|
45
|
970
|
|
300-300 |
720
|
28
|
75
|
970
|
|
300-300A |
666
|
24
|
75
|
970
|
|
300-300B |
623
|
21
|
55
|
970
|
|
300-380 |
720
|
44
|
132
|
970
|
|
300-380A |
666
|
38
|
110
|
970
|
|
300-380B |
623
|
33
|
90
|
970
|
|
350-250 |
800
|
20
|
75
|
970
|
|
350-250A |
715
|
16
|
55
|
970
|
|
350-315 |
800
|
32
|
90
|
970
|
|
350-315A |
748
|
28
|
75
|
970
|
|
350-315B |
692
|
24
|
75
|
970
|
|
350-400 |
800
|
50
|
160
|
970
|
|
350-400A |
750
|
44
|
132
|
970
|
|
350-400B |
697
|
38
|
110
|
970
|
|
400-400 |
1080
|
12.5
|
55
|
970
|
|
400-400A |
966
|
10
|
45
|
970
|
|
400-500 |
1080
|
20
|
90
|
970
|
|
400-500A |
966
|
17
|
75
|
970
|
|
400-500B |
935
|
15
|
55
|
970
|
|
400-625 |
1080
|
32
|
132
|
970
|
|
400-625A |
996
|
27
|
110
|
970
|
|
400-625B |
935
|
24
|
90
|
970
|
|
500-400 |
1200
|
12.5
|
75
|
970
|
|
500-400A |
1073
|
10
|
55
|
970
|
|
500-500 |
1200
|
20
|
110
|
970
|
|
500-500A |
1106
|
17
|
90
|
970
|
|
500-500B |
1040
|
15
|
75
|
970
|
|
500-625 |
1200
|
32
|
160
|
970
|
|
500-625A |
1106
|
27
|
132
|
970
|
|
500-625B |
1040
|
24
|
110
|
970
|
訂貨請盡量提供：1.型號2.口徑3.揚程4.流量5.電機功率（KW）6.轉速（R/min）7.電壓（V）8.材質是否帶附件
歡迎您訪問我們永嘉泉達的網站【www.sudwaly.cn】如有任何疑問.我公司專業生產管道泵，離心泵，排污泵等產品。您可以致電給我們,電話：0577-66999097、66999098，我們一定會盡心盡力為您提供優質的服務。
相關產品：
SGB立式防爆管道泵 IHGB立式不銹鋼防爆管道離心泵 SG管道增壓泵 SGR立式熱水管道泵 ISWR臥式熱水管道泵
GW管道排污泵 ISWH臥式不銹鋼管道離心泵 FS型玻璃鋼管道離心泵 CDLF不銹鋼立式多級管道泵
SGP立式不銹鋼管道泵 YG防爆管道離心泵 ISWB防爆管道離心泵 GDL立式多級管道泵 IHG不銹鋼管道泵 ISG管道離心泵 SGR熱水管道泵
產品名稱：
